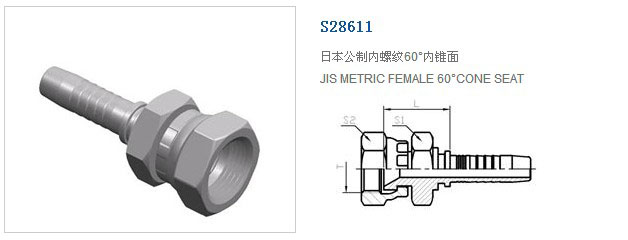

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | ||
|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑 DN | 標號 DASH | L | S1 |
| S28611GM-12-04 | M12X1.5 | 6 | 04 | 20 | 17 |
| S28611GM-14-04 | M14X1.5 | 6 | 04 | 21 | 19 |
| S28611GM-14-06 | M14X1.5 | 10 | 06 | 21 | 19 |
| S28611GM-16-04 | M16X1.5 | 6 | 04 | 24 | 22 |
| S28611GM-16-05 | M16X1.5 | 8 | 05 | 24 | 22 |
| S28611GM-16-06 | M16X1.5 | 10 | 06 | 24 | 22 |
| S28611GM-18-06 | M18X1.5 | 10 | 06 | 25 | 24 |
| S28611GM-18-08 | M18X1.5 | 13 | 08 | 24.5 | 24 |
| S28611GM-20-08 | M20X1.5 | 13 | 08 | 28.5 | 27 |
| S28611GM-22-08 | M22X1.5 | 13 | 08 | 25.5 | 27 |
| S28611GM-24-08 | M24X1.5 | 13 | 08 | 27.5 | 32 |
| S28611GM-24-10 | M24X1.5 | 16 | 10 | 28.5 | 32 |
| S28611GM-27-10 | M27X1.5 | 16 | 10 | 28.5 | 32 |
| S28611GM-30-12 | M30X1.5 | 19 | 12 | 28.5 | 36 |
| S28611GM-33-12 | M33X1.5 | 19 | 12 | 31 | 41 |
| S28611GM-33-16 | M33X1.5 | 25 | 16 | 32 | 41 |
| S28611GM-36-20 | M36X1.5 | 32 | 20 | 35.5 | 46 |
