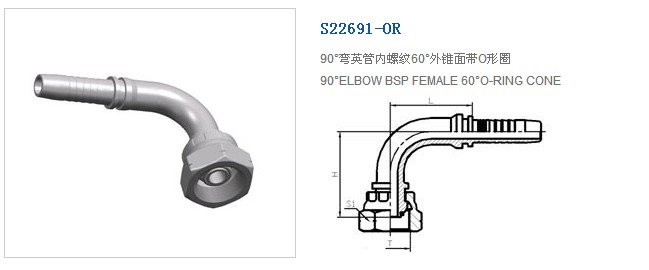

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑 DN | 標號 DASH | L | H | S1 |
| S22691-02-04OR | G1/8＂X28 | 6 | 04 | 32 | 34 | 14 |
| S22691-04-04OR | G1/4＂X19 | 6 | 04 | 32 | 35 | 19 |
| S22691-04-05OR | G1/4＂X19 | 8 | 05 | 33 | 40 | 19 |
| S22691-04-06OR | G1/4＂X19 | 10 | 06 | 36.5 | 42 | 19 |
| S22691-06-04ORT | G3/8＂X19 | 6 | 04 | 32 | 35 | 22 |
| S22691-06-05ORT | G3/8＂X19 | 8 | 05 | 33 | 39 | 22 |
| S22691-06-06OR | G3/8＂X19 | 10 | 06 | 36.5 | 42 | 22 |
| S22691-06-08OR | G3/8＂X19 | 13 | 08 | 43.5 | 47.5 | 22 |
| S22691-08-06ORT | G1/2＂X14 | 10 | 06 | 36.5 | 44.5 | 27 |
| S22691-08-08OR | G1/2＂X14 | 13 | 08 | 44.5 | 50.5 | 27 |
| S22691-10-08ORT | G5/8＂X14 | 13 | 08 | 44.5 | 49.5 | 30 |
| S22691-10-10OR | G5/8＂X14 | 16 | 10 | 55 | 55 | 30 |
| S22691-12-10ORT | G3/4＂X14 | 16 | 10 | 55 | 56.5 | 32 |
| S22691-12-12OR | G3/4＂X14 | 19 | 12 | 62 | 62.5 | 32 |
| S22691-16-12ORT | G1＂X11 | 19 | 12 | 62 | 61 | 41 |
| S22691-16-16OR | G1＂X11 | 25 | 16 | 74 | 73 | 41 |
| S22691-20-16ORT | G1.1/4＂X11 | 25 | 16 | 74 | 77 | 50 |
| S22691-20-20OR | G1.1/4＂X11 | 32 | 20 | 91.5 | 90 | 50 |
| S22691-24-20ORT | G1.1/2＂X11 | 32 | 20 | 91.5 | 88.5 | 55 |
| S22691-24-24OR | G1.1/2＂X11 | 38 | 24 | 108 | 105 | 55 |
| S22691-32-24ORT | G2＂X11 | 38 | 24 | 108 | 103 | 70 |
| S22691-32-32OR | G2＂X11 | 51 | 32 | 129 | 128.5 | 70 |
