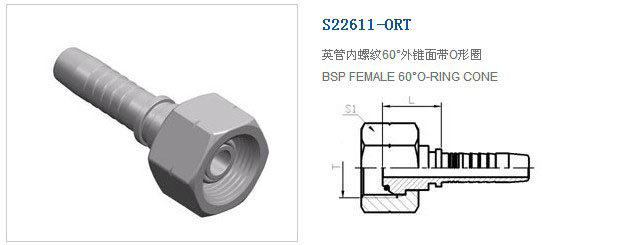

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | ||
|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑 DN | 標號 DASH | L | S1 |
| S22611-02-04OR | G1/8＂X28 | 6 | 04 | 15 | 14 |
| S22611-04-04OR | G1/4＂X19 | 6 | 04 | 18.5 | 19 |
| S22611-04-05OR | G1/4＂X19 | 8 | 05 | 19 | 19 |
| S22611-04-06OR | G1/4＂X19 | 10 | 06 | 19 | 19 |
| S22611-06-04ORT | G3/8＂X19 | 6 | 04 | 18 | 22 |
| S22611-06-05ORT | G3/8＂X19 | 8 | 05 | 19 | 22 |
| S22611-06-06OR | G3/8＂X19 | 10 | 06 | 20 | 22 |
| S22611-06-08OR | G3/8＂X19 | 13 | 08 | 20 | 22 |
| S22611-08-06ORT | G1/2＂X14 | 10 | 06 | 21 | 27 |
| S22611-08-08OR | G1/2＂X14 | 13 | 08 | 22 | 27 |
| S22611-10-08ORT | G5/8＂X14 | 13 | 08 | 22 | 30 |
| S22611-10-10OR | G5/8＂X14 | 16 | 10 | 23 | 30 |
| S22611-12-10ORT | G3/4＂X14 | 16 | 10 | 23 | 32 |
| S22611-12-12OR | G3/4＂X14 | 19 | 12 | 24 | 32 |
| S22611-16-12ORT | G1＂X11 | 19 | 12 | 25 | 41 |
| S22611-16-16OR | G1＂X11 | 25 | 16 | 26 | 41 |
| S22611-20-16ORT | G1.1/4＂X11 | 25 | 16 | 28.5 | 50 |
| S22611-20-20OR | G1.1/4＂X11 | 32 | 20 | 31 | 50 |
| S22611-24-20ORT | G1.1/2＂X11 | 32 | 24 | 32 | 55 |
| S22611-24-24OR | G1.1/2＂X11 | 38 | 24 | 32 | 55 |
| S22611-32-24ORT | G2＂X11 | 38 | 32 | 33.5 | 70 |
| S22611-32-32OR | G2＂X11 | 51 | 32 | 34 | 70 |
