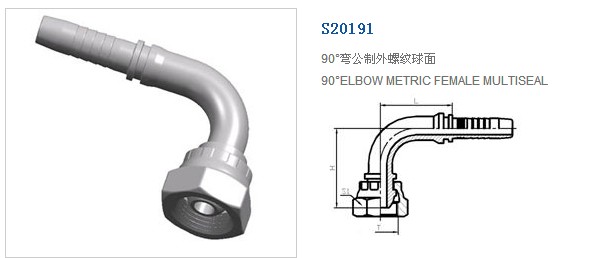

| 代號 | 螺紋 T | 軟管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內(nèi)徑 DN | 標號 DASH | L | H | S1 |
| S20191-12-04 | M12X1.5 | 6 | 04 | 32 | 32 | 17 |
| S20191-14-04T | M14X1.5 | 6 | 04 | 32 | 35.5 | 17 |
| S20191-14-05 | M14X1.5 | 8 | 05 | 33 | 40.5 | 19 |
| S20191-16-04T | M16X1.5 | 6 | 04 | 32 | 34.5 | 19 |
| S20191-16-05T | M16X1.5 | 8 | 05 | 33 | 41 | 19 |
| S20191-16-06 | M16X1.5 | 10 | 06 | 36.5 | 43 | 22 |
| S20191-18-06T | M18X1.5 | 10 | 06 | 36.5 | 44.5 | 22 |
| S20191-18-08 | M18X1.5 | 12 | 08 | 43.5 | 50 | 24 |
| S20191-22-08T | M22X1.5 | 13 | 08 | 44.5 | 52 | 27 |
| S20191-24-10 | M24X1.5 | 16 | 10 | 55 | 48 | 30 |
| S20191-27-10T | M27X1.5 | 16 | 10 | 55 | 54 | 32 |
| S20191-30-12T | M30X1.5 | 19 | 12 | 64 | 67 | 36 |
| S20191-39-16T | M39X2 | 25 | 16 | 74 | 72 | 46 |
| S20191-45-20T | M45X2 | 32 | 20 | 91.5 | 85 | 50 |
| S20191-52-24T | M52X2 | 38 | 24 | 109 | 100 | 60 |
