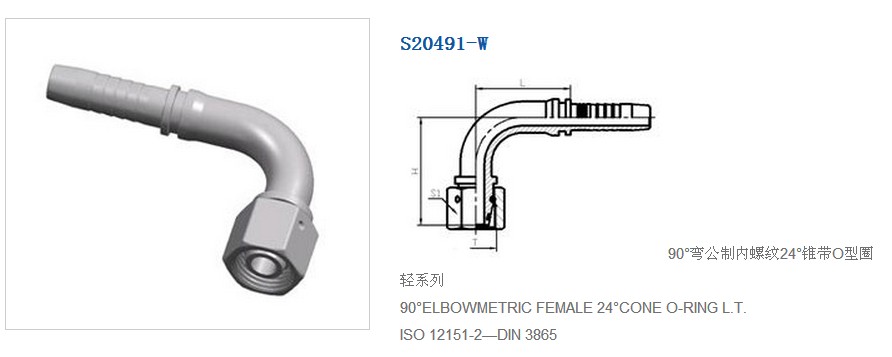

| 代號 | 螺紋 T | 軟管 HOSE BORE | 管子外徑 | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑 DN | 標號 DASH | TUBE O.D | L | H | S1 |
| S20491-12-04W | M12X1.5 | 6 | 04 | 6 | 32 | 37.5 | 14 |
| S20491-14-04T | M14X1.5 | 6 | 04 | 8 | 32 | 33.5 | 17 |
| S20491-14-05W | M14X1.5 | 8 | 05 | 8 | 33 | 43 | 17 |
| S20491-14-06W | M14X1.5 | 10 | 06 | 8 | 36.5 | 44 | 17 |
| S20491-16-04T | M16X1.5 | 6 | 04 | 10 | 32 | 33.5 | 19 |
| S20491-16-05T | M16X1.5 | 8 | 05 | 10 | 27.5 | 29 | 19 |
| S20491-16-06W | M16X1.5 | 10 | 06 | 10 | 36.5 | 45 | 19 |
| S20491-18-05T | M18X1.5 | 8 | 05 | 12 | 33 | 40 | 22 |
| S20491-18-06T | M18X1.5 | 10 | 06 | 12 | 36.5 | 41 | 22 |
| S20491-18-08W | M18X1.5 | 13 | 08 | 12 | 44.5 | 52.5 | 22 |
| S20491-22-08T | M22X1.5 | 13 | 08 | 15 | 43.5 | 48 | 27 |
| S20491-22-10W | M22X1.5 | 16 | 10 | 15 | 55 | 57.5 | 27 |
| S20491-26-10T | M26X1.5 | 16 | 10 | 18 | 55 | 56.5 | 32 |
| S20491-26-12W | M26X1.5 | 19 | 12 | 18 | 62 | 66.5 | 32 |
| S20491-30-10T | M30X2 | 16 | 10 | 22 | 55 | 56 | 36 |
| S20491-30-12T | M30X2 | 19 | 12 | 22 | 62 | 62 | 36 |
| S20491-30-16W | M30X2 | 25 | 16 | 22 | 74 | 76 | 36 |
| S20491-36-12T | M36X2 | 19 | 12 | 28 | 62 | 64 | 41 |
| S20491-36-16T | M36X2 | 25 | 16 | 28 | 74 | 74 | 41 |
| S20491-36-20W | M36X2 | 32 | 20 | 28 | 91.5 | 89.5 | 41 |
| S20491-45-16T | M45X2 | 25 | 16 | 35 | 74 | 73.5 | 50 |
| S20491-45-20T | M45X2 | 32 | 20 | 35 | 91.5 | 86 | 50 |
| S20491-45-24W | M45X2 | 38 | 24 | 35 | 108 | 105 | 50 |
| S20491-52-20T | M52X2 | 32 | 20 | 42 | 91.5 | 87.5 | 60 |
| S20491-52-24T | M52X2 | 38 | 24 | 42 | 109 | 101 | 60 |
| S20491-52-32W | M52X2 | 51 | 32 | 42 | 129 | 130.5 | 60 |
