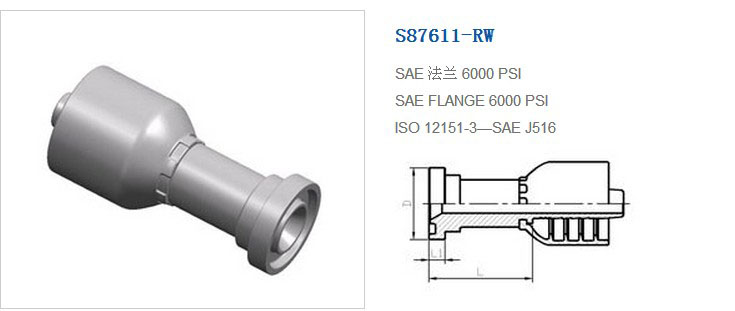

| 代 號 | 法蘭型號 | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | FLANGE SIZE | 公稱內徑 DN | 標號 DASH | L | D | L1 |
| S87611-08-08RW | 1/2＂ | 13 | 08 | 47 | 31.7 | 7.75 |
| S87611-12-10RW | 3/4＂ | 16 | 10 | 51 | 41.3 | 8.76 |
| S87611-12-12RW | 3/4＂ | 19 | 12 | 51 | 41.3 | 8.76 |
| S87611-16-12RW | 1＂ | 19 | 12 | 56 | 47.6 | 9.53 |
| S87611-16-16RW | 1＂ | 25 | 16 | 57 | 47.6 | 9.53 |
| S87611-16-20RW | 1＂ | 32 | 20 | 58 | 47.6 | 9.53 |
| S87611-20-16RW | 1.1/4＂ | 25 | 16 | 65 | 54 | 10.29 |
| S87611-20-20RW | 1.1/4＂ | 32 | 20 | 66 | 54 | 10.29 |
| S87611-24-20RW | 1.1/2＂ | 32 | 20 | 75 | 63.5 | 12.57 |
| S87611-24-24RW | 1.1/2＂ | 38 | 24 | 75 | 63.5 | 12.57 |
| S87611-32-24RW | 2＂ | 38 | 24 | 85 | 79.4 | 12.57 |
| S87611-32-32RW | 2＂ | 51 | 32 | 85 | 79.4 | 12.57 |
