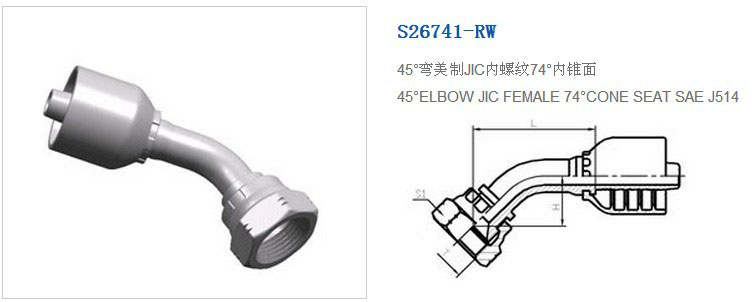

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑 DN | 標號 DASH | L | H | S1 |
| S26741-04-04RW | 7/16＂X20 | 6 | 04 | 39 | 17.4 | 14 |
| S26741-05-05RW | 1/2＂X20 | 8 | 05 | 40 | 16.5 | 17 |
| S26741-06-05RW | 9/16＂X18 | 8 | 05 | 42 | 18.3 | 19 |
| S26741-06-06RW | 9/16＂X18 | 10 | 06 | 45.5 | 20 | 19 |
| S26741-06-08RW | 9/16＂X18 | 12 | 08 | 55 | 23 | 19 |
| S26741-08-06RW | 3/4＂X16 | 10 | 06 | 46.5 | 21 | 22 |
| S26741-08-08RW | 3/4＂X16 | 13 | 08 | 56 | 23.7 | 22 |
| S26741-10-08RW | 7/8＂X14 | 13 | 08 | 56.5 | 24 | 27 |
| S26741-10-10RW | 7/8＂X14 | 16 | 10 | 64.5 | 25.3 | 27 |
| S26741-10-12RW | 7/8＂X14 | 20 | 12 | 71 | 28.5 | 27 |
| S26741-12-10RW | 1.1/16＂X12 | 16 | 10 | 66.5 | 27.1 | 32 |
| S26741-12-12RW | 1.1/16＂X12 | 19 | 12 | 73 | 30.2 | 32 |
| S26741-14-12RW | 1.3/16＂X12 | 19 | 12 | 73 | 30.2 | 36 |
| S26741-16-16RW | 1.5/16＂X12 | 25 | 16 | 85 | 32.2 | 41 |
| S26741-20-20RW | 1.5/8＂X12 | 32 | 20 | 99 | 38.4 | 50 |
| S26741-24-24RW | 1.7/8＂X12 | 38 | 24 | 113 | 43.9 | 55 |
| S26741-32-32RW | 2.1/2＂X12 | 51 | 32 | 136.5 | 51.5 | 75 |
