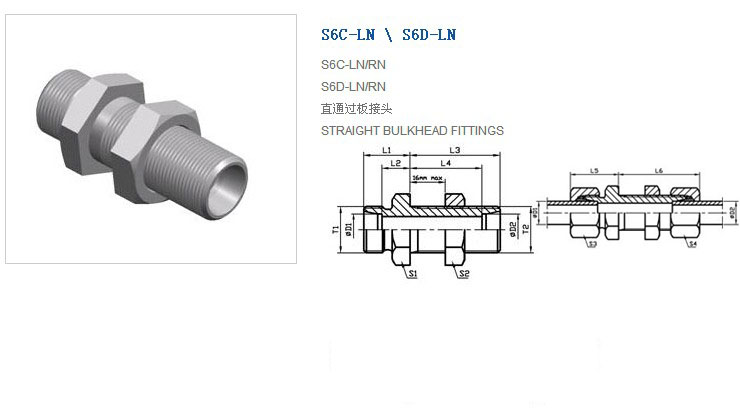

| 系列 | 代號 RAPT NO. | 螺紋 THREAD | 管子外徑 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 | 工作壓力 (bar) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | D1、D2 | L1 | L2 | L3 | L4 | L5 | L6 | S1 | S2 | S3、S4 | ||||
| L | S6C-12LN | M12X1.5 | M12X1.5 | 06 | 14 | 7 | 34 | 27 | 22 | 42 | 17 | 17 | 14 | 61 | 500 |
| S6C-14LN | M14X1.5 | M14X1.5 | 08 | 15 | 8 | 34 | 27 | 23 | 42 | 19 | 19 | 17 | 84 | 500 | |
| S6C-16LN | M16X1.5 | M16X1.5 | 10 | 17 | 10 | 35 | 28 | 25 | 43 | 22 | 22 | 19 | 109 | 500 | |
| S6C-18LN | M18X1.5 | M18X1.5 | 12 | 17 | 10 | 36 | 29 | 25 | 44 | 24 | 24 | 22 | 136 | 400 | |
| S6C-22LN | M22X1.5 | M22X1.5 | 15 | 19 | 12 | 38 | 31 | 27 | 46 | 27 | 30 | 27 | 222 | 400 | |
| S6C-26LN | M26X1.5 | M26X1.5 | 18 | 21 | 13.5 | 40 | 32.5 | 30 | 49 | 32 | 36 | 32 | 334 | 400 | |
| S6C-30LN | M30X2 | M30X2 | 22 | 24 | 16.5 | 42 | 34.5 | 33 | 51 | 36 | 41 | 36 | 430 | 250 | |
| S6C-36LN | M36X2 | M36X2 | 28 | 26 | 18.5 | 43 | 35.5 | 35 | 52 | 41 | 46 | 41 | 566 | 250 | |
| S6C-45LN | M45X2 | M45X2 | 35 | 29 | 18.5 | 47 | 36.5 | 40 | 58 | 50 | 55 | 50 | 858 | 250 | |
| S6C-52LN | M52X2 | M52X2 | 42 | 30 | 19 | 47 | 36 | 42 | 59 | 60 | 65 | 60 | 1236 | 250 | |
| S | S6D-14LN | M14X1.5 | M14X1.5 | 06 | 19 | 12 | 36 | 29 | 27 | 44 | 19 | 19 | 17 | 103 | 900 |
| S6D-16LN | M16X1.5 | M16X1.5 | 08 | 20 | 13 | 36 | 29 | 28 | 44 | 22 | 22 | 19 | 132 | 900 | |
| S6D-18LN | M18X1.5 | M18X1.5 | 10 | 22 | 14.5 | 37 | 29.5 | 31 | 46 | 24 | 24 | 22 | 179 | 900 | |
| S6D-20LN | M20X1.5 | M20X1.5 | 12 | 22 | 14.5 | 38 | 30.5 | 31 | 47 | 27 | 27 | 24 | 216 | 900 | |
| S6D-22LN | M22X1.5 | M22X1.5 | 14 | 25 | 17 | 40 | 32 | 35 | 50 | 30 | 30 | 27 | 296 | 700 | |
| S6D-24LN | M24X1.5 | M24X1.5 | 16 | 25 | 16.5 | 40 | 31.5 | 35 | 50 | 32 | 32 | 30 | 343 | 630 | |
| S6D-30LN | M30X2 | M30X2 | 20 | 28 | 17.5 | 44 | 33.5 | 39 | 55 | 41 | 41 | 36 | 569 | 630 | |
| S6D-36LN | M36X2 | M36X2 | 25 | 32 | 20 | 47 | 35 | 44 | 59 | 46 | 46 | 46 | 922 | 630 | |
| S6D-42LN | M42X2 | M42X2 | 30 | 35 | 21.5 | 51 | 37.5 | 48 | 64 | 50 | 50 | 50 | 1106 | 420 | |
| S6D-52LN | M52X2 | M52X2 | 38 | 38 | 22 | 53 | 37 | 53 | 68 | 65 | 65 | 60 | 1805 | 420 | |
